What Is CCTV Drain Inspection and How Does It Work?

CCTV drain inspection is a non-invasive diagnostic method that uses a specially designed waterproof camera to examine the interior of underground drain and sewer pipes. The camera is mounted on a flexible push rod and inserted through an existing access point. typically a gully trap, inspection opening or cleanout. and guided through the pipe network while transmitting a live high-definition video feed to a surface monitor.

As the camera advances through the pipe, our operator observes the condition of the pipe walls, joints and overall alignment in real time. Every defect is noted along with its precise distance from the entry point, allowing us to map the exact location of problems within the drainage system. This eliminates the guesswork that comes with above-ground diagnosis and prevents unnecessary excavation in the wrong location.

At Pro Expose Hydro Vacs, we carry our drain camera alongside our high-pressure water jetter and vac truck. This means that if the camera identifies a blockage that can be cleared on the spot, we can jet and vacuum the drain immediately. no second call-out, no waiting for a different contractor, and no additional mobilisation cost. For Sydney homeowners and property managers dealing with drainage issues, this combined capability turns what is normally a multi-visit problem into a single efficient appointment.

Issues We Detect

What Our Drain Camera Finds Inside Your Pipes

Underground drainage problems are invisible from the surface. Our CCTV camera reveals the full picture without digging a single hole.

Tree Root Intrusion Roots penetrate pipe joints and cracks seeking moisture, progressively expanding until they obstruct flow entirely. Our camera identifies the entry points and the extent of root mass inside the pipe so we can target clearing and advise on long-term prevention.

Cracks and Fractures Hairline cracks in clay, concrete and PVC pipes allow groundwater infiltration and soil ingress. Left unaddressed, minor cracks worsen into structural failures. The camera captures the crack type, length and severity to determine whether relining or replacement is needed.

Joint Offsets and Displacement Ground movement, soil subsidence or poor original installation can shift pipe joints out of alignment. Even a small offset creates a ledge inside the pipe that catches debris, accelerates root entry and progressively restricts flow capacity.

Bellies and Sags A belly is a low spot in the pipe where water pools instead of flowing freely to the main. Bellies collect sediment and debris over time, leading to recurring blockages and foul odours that surface clearing alone cannot permanently resolve.

Blockages and Obstructions The camera pinpoints the exact location, nature and cause of blockages. whether grease buildup, sediment accumulation, foreign objects or construction debris. Knowing what and where the obstruction is allows us to select the most effective clearing method.

Collapsed Pipe Sections Sections of pipe that have crushed under ground load, vehicle traffic or shifting soil cause complete or near-complete flow obstruction. Camera inspection confirms the collapse location and length, which is essential information before committing to excavation and pipe replacement.

When to Inspect

When You Need a CCTV Drain Inspection in Sydney

A drain camera inspection is not only for emergencies. It is a diagnostic tool that applies at multiple stages of property ownership, construction and maintenance. The following situations are where CCTV inspection delivers the most value.

Pre-Purchase Property Inspection

Standard building reports do not assess underground drainage. A pre-purchase CCTV inspection reveals cracked pipes, root-invaded sewer lines and ageing clay infrastructure that could cost thousands to repair after settlement. For properties over 20 years old, or homes with established trees near drain lines, this inspection is essential due diligence that protects your investment.

Recurring Blockages That Keep Coming Back

If your drains block repeatedly after clearing, the blockage is a symptom rather than the problem. Camera inspection identifies the structural cause. whether that is a joint offset catching debris, a belly pooling sediment, or persistent root intrusion through a cracked joint. Treating the cause prevents the cycle of repeated call-outs and escalating repair costs.

Before Renovations or Extensions

Any renovation that impacts your drainage layout. bathroom additions, kitchen relocations, granny flat builds or pool installations. should begin with a CCTV inspection. The camera confirms the location, depth and condition of existing drain lines so your builder and plumber can design around them rather than discovering problems mid-construction.

Persistent Odours or Slow Drainage

Sewage smells inside or outside a property, gurgling drains and persistently slow water flow often indicate cracked pipes, broken joints or partial collapses that surface-level clearing cannot fix. A camera inspection isolates the source so repairs can be targeted accurately.

Stormwater Drainage Issues

Flooding in your yard, pooling water near foundations or overflowing stormwater pits can all stem from blocked or damaged stormwater pipes underground. CCTV inspection traces the stormwater line to identify the failure point, so excavation and repair can be carried out precisely where needed.

The Pro Expose Difference

Camera, Jetter and Vac Truck. All in One Visit

Most drain camera operators can only diagnose. We diagnose and resolve in the same appointment.

The typical approach to a drain problem involves multiple contractors and multiple visits: one company to inspect with a camera, another to clear with a jetter, and potentially a third with excavation equipment if the pipe needs physical access. Each visit adds mobilisation cost, scheduling delays and coordination overhead.

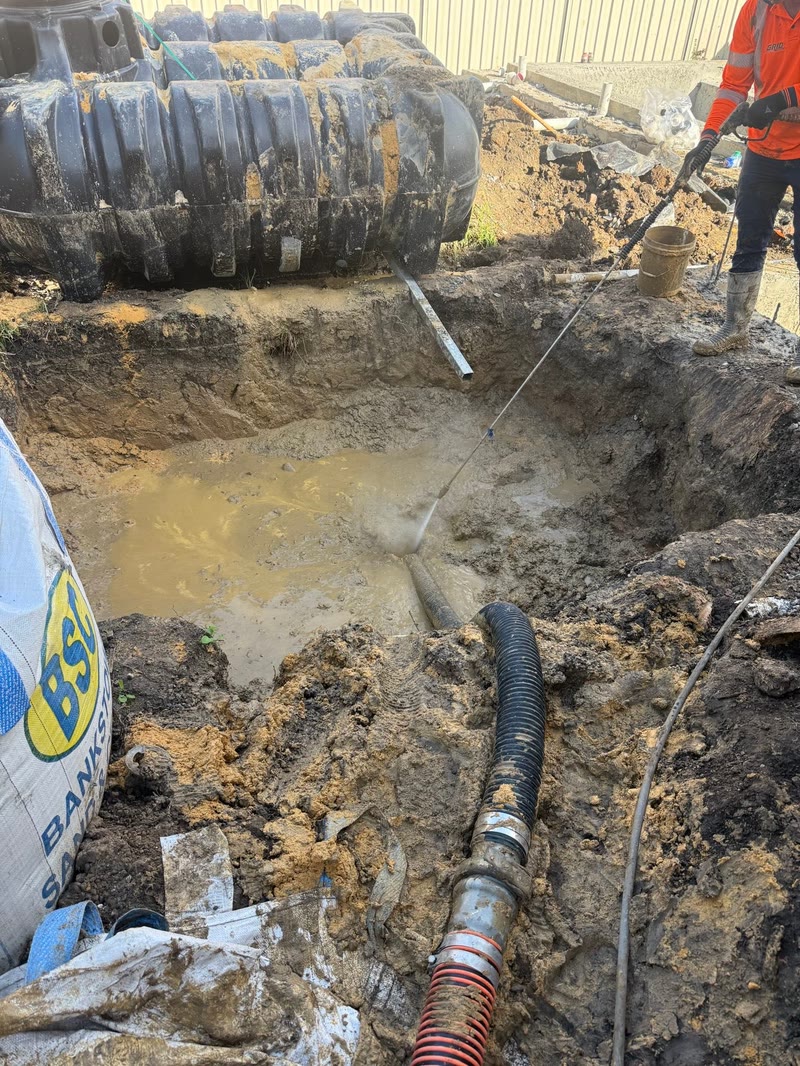

Pro Expose Hydro Vacs eliminates that fragmentation. Our truck carries drain camera equipment, an industrial high-pressure water jetter and full hydro excavation capability on every job. When the camera finds a blockage, we can jet it clear immediately. When the camera reveals a damaged pipe section that needs physical access, we can hydro excavate to expose it the same day. You get a complete diagnosis, a clear drain and. if excavation is required. precise, non-destructive access to the problem, all from one crew in one visit.

Inspect, Clear and Excavate. One Crew No waiting for separate contractors. Our camera, jetter and vac truck are all on site from the start, ready to act on whatever the inspection reveals.

On-Site Footage and Condition Assessment We walk you through the live camera feed, explain each finding and its location, and provide a clear condition assessment with recommended next steps.

Honest Advice. No Unnecessary Upselling We show you exactly what the camera shows. If your pipe is in good condition, we tell you. If it needs work, we explain your options and let you decide.

Fast Mobilisation Across Sydney Same-day CCTV drain inspection available across greater Sydney. Call early morning for best availability.

Fully Insured for All Work All CCTV inspection and associated clearing or excavation work is carried out under comprehensive public liability insurance.

FAQ

CCTV Drain Inspection Sydney. Frequently Asked Questions

How does a CCTV drain camera actually work?

A small, waterproof high-definition camera is attached to a flexible rod and fed into your drain through an access point such as a gully trap, inspection opening or cleanout. The camera transmits a live video feed to a monitor on the surface, allowing our operator to see the inside of the pipe in real time. As the camera travels through the pipe, we identify and mark the exact distance of every defect from the entry point for precise location.

What types of drain problems can a pipe camera detect?

Our drain camera identifies tree root intrusion, hairline and structural cracks, displaced or offset pipe joints, bellies and sags where water pools, grease and scale buildup, foreign objects lodged in the line, collapsed pipe sections, ground movement damage and corrosion in older metal pipes. These issues are invisible from above ground and would otherwise require exploratory excavation to diagnose.

When should I get a pre-purchase drain inspection before buying a property?

Always. Standard building and pest inspections do not check underground drainage. A pre-purchase CCTV drain inspection reveals hidden pipe damage, root intrusion and ageing infrastructure that could cost thousands to repair after settlement. It is especially important for properties over 20 years old, homes with large trees near sewer lines, and any property with a history of drainage complaints.

Can you clear a blockage and inspect the drain in the same visit?

Yes. Unlike standalone camera operators, Pro Expose carries drain camera equipment alongside our high-pressure water jetter and vac truck. If the camera reveals a blockage that can be cleared on the spot, we jet and vacuum the line immediately. no second call-out and no additional mobilisation cost. This combined approach saves time and money.

What do I receive after the CCTV drain inspection?

We walk you through the findings on-site using the live camera feed, explaining each issue and its location within the pipe. You receive a verbal condition assessment covering the type, severity and position of any defects found. We then discuss recommended next steps. whether that is jetting, hydro excavation to access the pipe for repair, or monitoring. For pre-purchase inspections, we can provide documentation to support your property negotiations.

How much does a CCTV drain inspection cost in Sydney?

Pricing varies depending on the number of drain lines to inspect, pipe accessibility and overall system length. We provide upfront, transparent quotes with no hidden fees. Call or text 0438 498 274 with your suburb and a brief description of the issue, and we will provide a fast quote. If combined with a clearing service, inspection costs are often bundled for better value.
